Quick-Release Wall Mount Plate (VESA 75) for M1 Series Monitor

NT$385.00

Applicable Model: M141E, M152H, M161H

(No reviews yet) Write a Review
SKU:
GA-M141-001
UPC:
4718785842475
Availability:
Usually Ships in 2 Workdays
Quick-Release Wall Mount Plate (VESA 75)

● Proprietary for M141E/ M152H/ M161H portable monitors
● Made of high-strength iron
● Compatible with VESA 75 M5 screw holes
● Be secured directly onto the wall
● Can be attached to VESA 75 monitor arm/wall bracket/T1S2 desktop stand, etc.
● Equipped with M1 quick-release plug for easy installation/removal

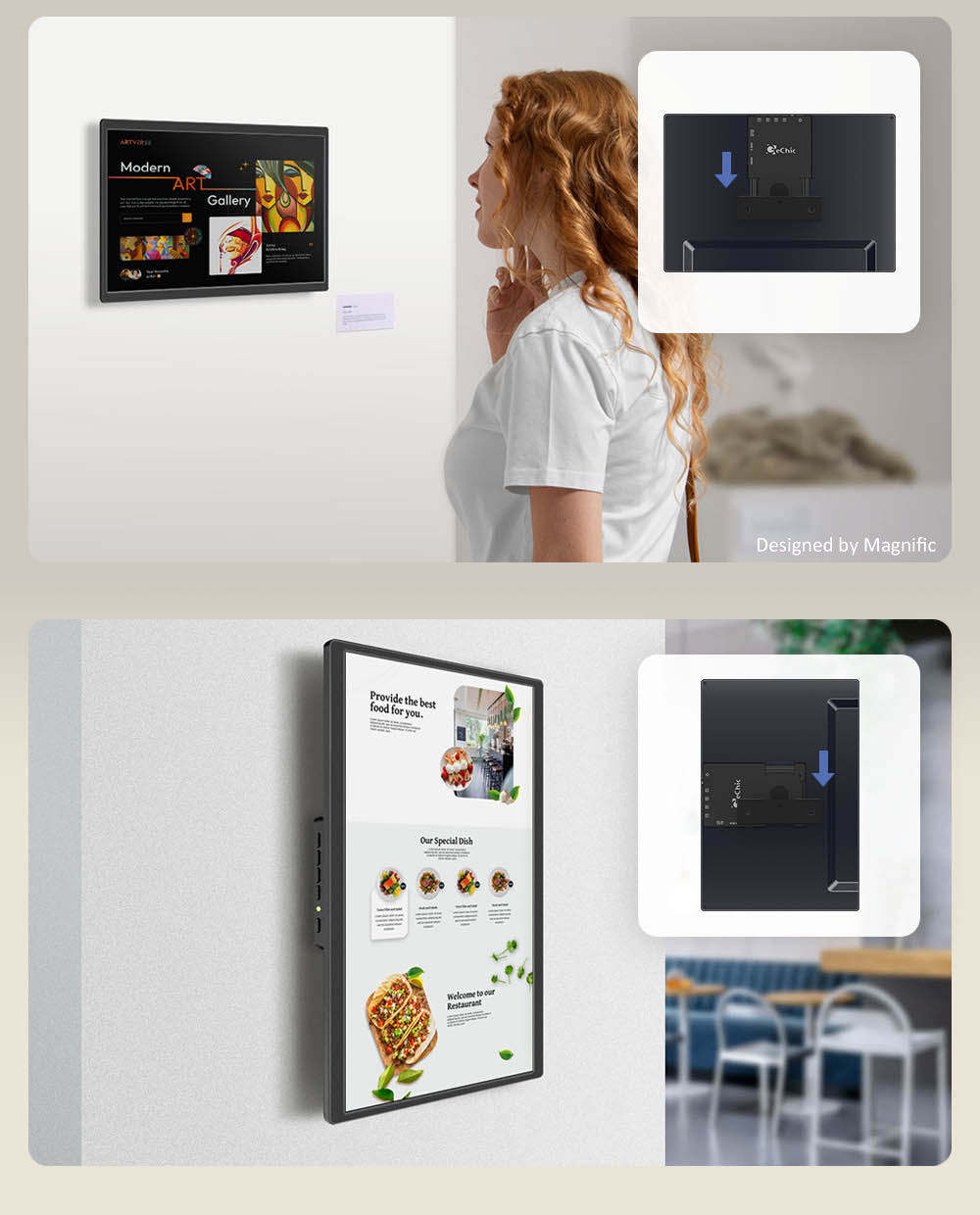

● suitable to install monitors in malls, countertops, factories/production lines, office/home spaces

Revolutionary Design
Mount Screen on Wall in a Second
Say goodbye to bulky monitors! The M1 series of monitors offer a slim and portable design that can also be mounted on walls. To simplify installation, the quick-release wall mount plate has been specifically designed for M1 series monitors. This plate can be easily attached to the wall or various VESA monitor arms and then plugged into the M1 monitor, saving your installation time and effort.

Rotate the Direction!
Perfect to Watch in Portrait

To achieve standard horizontal viewing, simply insert the quick-release plug of the plate into the bottom quick-release slot of the M1 monitor. By inserting the right or left quick-release slot into the plate, the M141E monitor can be turned to a vertical orientation of either 90° or 270°.
To display M161H/M152H in portrait mode, simply lock the quick-release wall mount plate straight onto the wall. Insert the monitor into the quick release plug on the plate horizontally through top / bottom quick-release slots. Finally, fine-tune the horizontal tilt angle of the monitor.
High-Strength Hinge
Free Adjustable Tilt Angle
The quick-release plug features a high-strength hinge design that allows the screen to be tilted forward and backward according to the mounting position and viewing needs.

*Caution: Avoid colliding the monitor with the wall while adjusting the tilt angles. The adjustable tilt angle varies depending on the model.

VESA 75 Standard Holes
Compatible for Various Mounts
When paired with a VESA 75 monitor arm, the quick-release wall mount plate can be easily elevated by using two sets of bolts and nuts to attach to the 75mm holes on either the top or bottom row of the VESA arm!
Dual Arm, Dual Screen
A Perfect Match for Your Large Monitor

When using a large desktop monitor as your primary display, the M1 series of monitors can be converted to a vertical second monitor with a twin cantilever VESA arm. Additionally, two M1 monitors can also be utilized to configure a dual-monitor workstation!
Suitable Models
High Strength, Stable and Firm
The body of M1S4 Stand is made of iron, and painted by power electrodeposit, showing a fine texture and a matte texture. The stand base is thin and tiny, not taking up space, but keeps stable by its balance design. After installing the monitor from its quick-release stand, the high-strength hinge of M1S4 stand makes the raised monitor stay stably without shaking!

Installation
Safety Warning
1. When adjusting the tilt angle, hold two sides of the monitor evenly with both hands. Avoid single-handed operation to prevent screen cracking or deforming.

2. The company shall not be liable for compensation or consequential liability for damage to equipment or injury caused by improper use or installation(e.g., improperly tightened screws, etc.).

A. Mount on the Wall
Once you've determined your preferred display orientation, follow the steps in the figures below to install the plate, either horizontally or vertically.
①Align the plate’s screw holes with the desired mounting position and secure the plate to the wall by enforcing three M4 self-tapping screws.
②Align the quick release bottom port (for horizontal) or quick release left/ right port (for vertical) on the back of the monitor with the quick release plug on the plate and insert the monitor. (Shown with M141E monitor in the figures)
B. Mount on VESA 75 Monitor Arm
Once you've determined your preferred display orientation, follow the steps in the figures below to install the plate, either horizontally or vertically.
①Align two VESA 75 screw holes on the plate with the VESA 75 screw holes on the monitor arm. Secure the plate to the monitor arm by two sets of M4 bolt and nut.
②Align the quick release bottom port (for horizontal) or quick release
left/ right port (for vertical) on the back of the monitor with the quick release plug on the plate and insert the monitor. (Shown with M141E monitor in the figures)
● This plate can be secured to the upper or lower VESA arm holes. When locked in the upper holes, the monitor offers a wider range for backward tilt angles.

C. Detach the Monitor
Tilt the screen slightly forward. Hold the bottom of the monitor with one hand and press the round button of the quick release plug with the other hand to detach the monitor.

Specification

Product Name
Quick-Release Wall Mount Plate(VESA 75)

Applicable
M161H/ M152H/ M141E
Caution! Other portable monitors not equipped with a quick-release port are not compatible with the installation of this Wall Mount Plate.

Dimension(W×H×D)
100×58×35.5mm

Weight
94g

Material
SPCC, PC

Color
Black

Accessory
M4 Bolt and Nut ×2 set
M4 Self-Tapping Screws 3/4" ×3 pics

Function
Wall Mount Plate or VESA 75 Mount Plate compatible with monitors equipped with quick-release ports, such as M141E, M152H, M161H, etc.
