1503 Multi-Mount Kit-V2 for Monitor Arm & Wall Mount

(1 review) Write a Review
1503 Multi-Mount Kit-V2 for Monitor Arm & Wall Mount

For 1503 Series Portable Monitor

Versatile Multi-Mount Kit

The proprietary Multi-Mount Kit is designed for the On-Lap 1503 series to support the VESA100 industrial standard. It can not only be combined with a wall mount or monitor arm but also a camera tripod with a 1/4” screw hole. Furthermore, the Multi-Mount Kit enables three viewing angles via different screw hole positions for assembly.

VESA 100 Wall Mount/ Arm

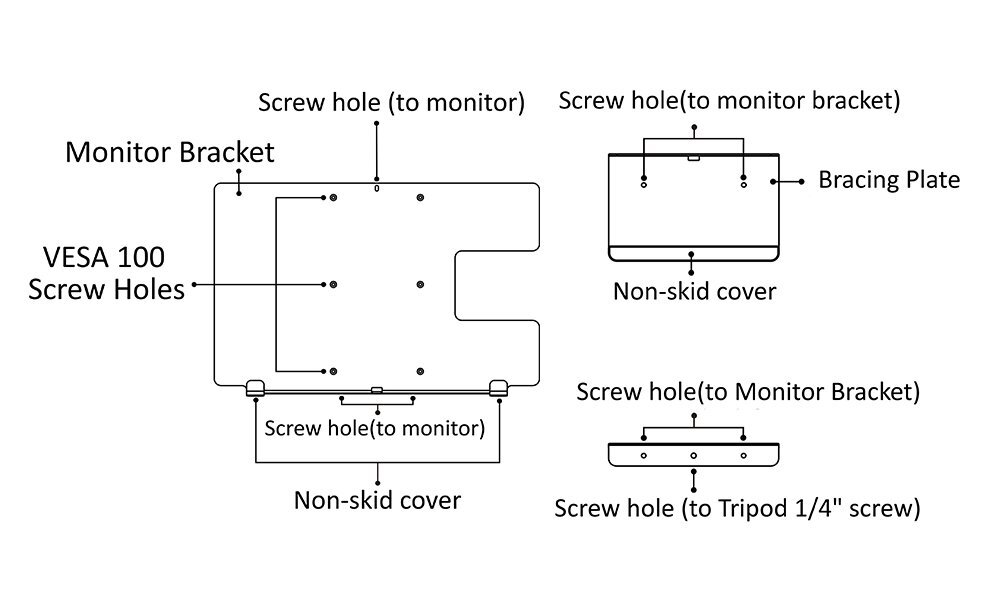

There are six screw holes on the Multi-Mount Kit that provide higher and lower VESA100 positions to mount the 1503 monitor on a wall mount or arm, which makes the layout adjustable and space-efficient.

Mount on Tripod

The 1/4” screw hole on the bottom of Multi-Mount Kit allows photographers to install the 1503 monitor on a tripod by securing it to the camera cradle head.

Mini PC turns into All-in-One. An Mobile Way for Maker.

The Multi Mount Kit for the 1503 is designed with 6 VESA 100 screw holes.

You can choose to screw higher or lower VESA 100 positions, or install an IntelⓇ  NUC with a low-position stand as well.

The 1503 Multi Mount Kits provides flexible and useful VESA and stand solutions for your space planning.

Low-Angle Stand

A bracing plate inside the Multi Mount Kit can be screwed on for providing three viewing angles: 30°, 40°, and 75°. A lower angle will be perfect for touch and writing requirements.

Standard Accessories:

  • Screw (Silver,M2 x 5mm)*1pcs
  • Screw (Silver,M2 x 6mm)*4 pcs
  • Screw (Black,M4 x 5mm)*6 pcs

●Part Description
