Premium Anti-Glare & Anti-Fingerprint Coating
Built to Last, Engineered for Embedded Touch Projects
All-new 15.6-inch T315 Touch Monitor
The true-flat T315 capacitive touchscreen monitor is built for enterprise and industrial use, featuring a high-brightness panel with long-lasting backlight, matte anti-fingerprint coating, and responsive touch. Dual energy-saving mechanisms—including ECO mode and intelligent brightness adjustment—enhance its durability. With HDMI and USB-C ports plus 5V/12V/24V power support, it works with industrial PCs, mini-PCs, and automation equipment. VESA 100 mounting allows installation on a stand, wall, or seamless integration with the proprietary frame plate, making it ideal for 24/7 environments such as server rooms, production lines, and public self-service facilities.
Exceptional FHD Detail
Bright & High Contrast, Clear and Comfortable

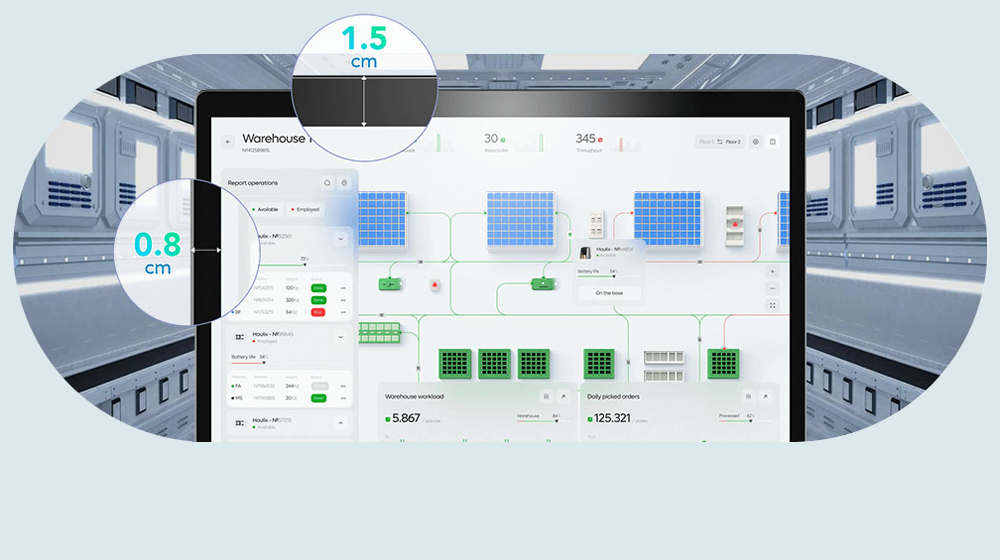

The Full HD 15.6-inch panel has ultra-high contrast rate, rendering sharp, easily legible text and images. With extreme brightness, T315 is ideal for well-lit production lines, warehouses, and for integration into POS terminals and kiosks in commercial environments. With its narrow 0.8–1.5 cm bezel, the compact T315 maximizes the display area, allowing the monitor to be seamlessly embedded into equipment for a sleek and streamlined design.
≥7H High Hardness Touchscreen
Dual Coating with Anti-Glare & Anti-Fingerprint
___

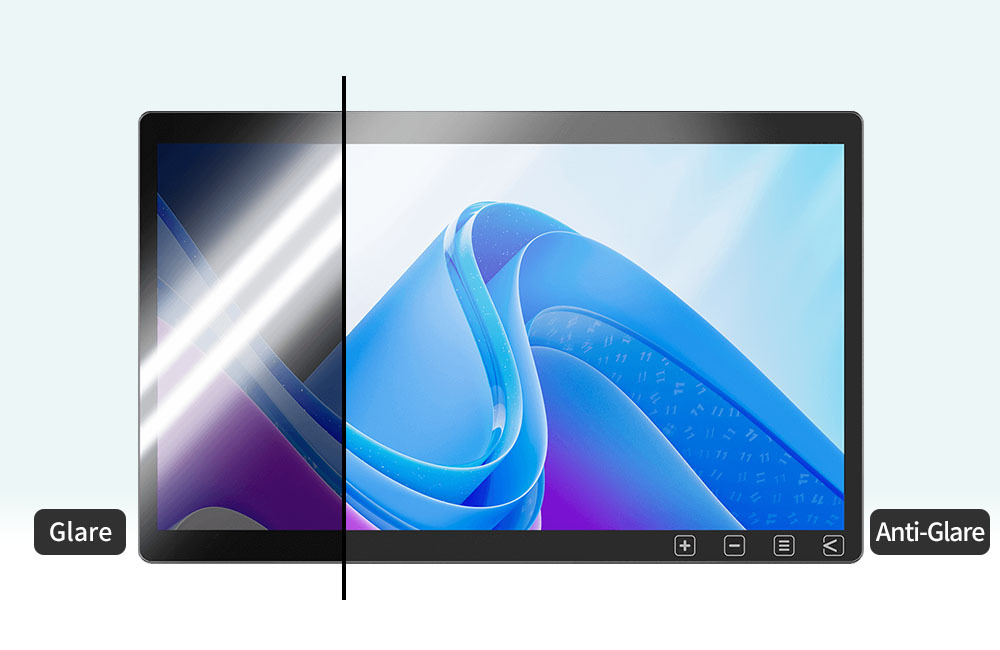

AG Matte for Eye-Protection
The AG (anti-glare) matte coating of the T315 touchscreen significantly reduces ambient reflections, preventing glare-induced eye strain while delivering clear, user-friendly viewing even in industrial and commercial spaces with complex lighting.
___
AF Fingerprint-Resistant, Smooth & Clea
With advanced anti-fingerprint coating technology, the touchscreen surface achieves oleophobic and hydrophobic properties, effectively resisting fingerprints, oil, and water stains. This ensures the display remains consistently clear and bright, smooth, and easy to clean, while minimizing the impact of dust and grime on touchscreen performance.
Durable & Reliable
50,000hrs Long Backlight Lifespan
As displays in production lines or public spaces are often touched, screens easily become breeding grounds for bacteria and viruses. The T151B’s touch glass features an antibacterial coating that releases silver ions to break down bacterial and viral structures. Certified by ISO and JIS standards, it effectively inhibits bacterial growth, inactivates viruses and microorganisms, and prevents the screen from becoming a source of contamination.
Patented Intelligent Energy Saving
Greatly Prolongs Display Life
The T315's OSD menu adopts dual patented intelligent energy-saving mechanisms designed for long-hour or 24/7 equipment operation. By reducing power consumption while maintaining optimal brightness performance, the standard backlight lifespan is greatly extended.

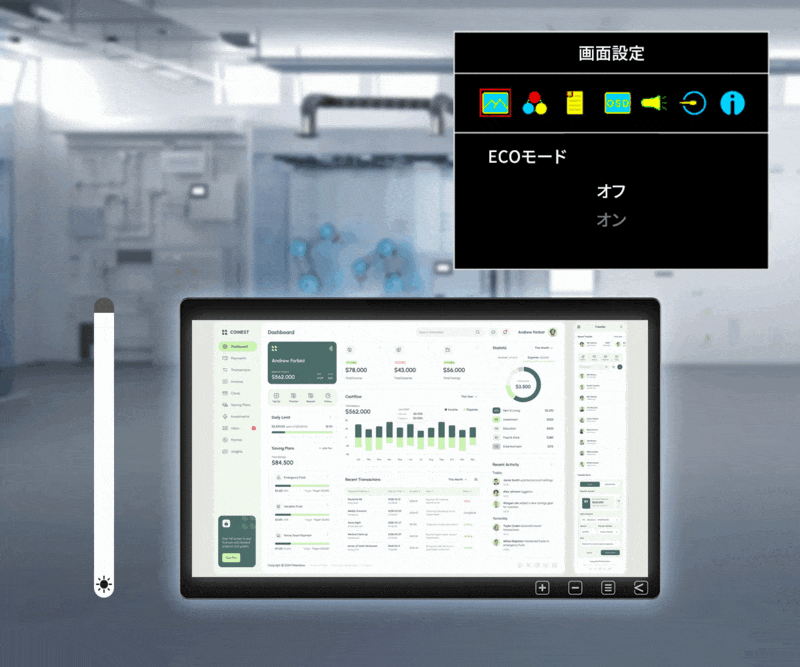

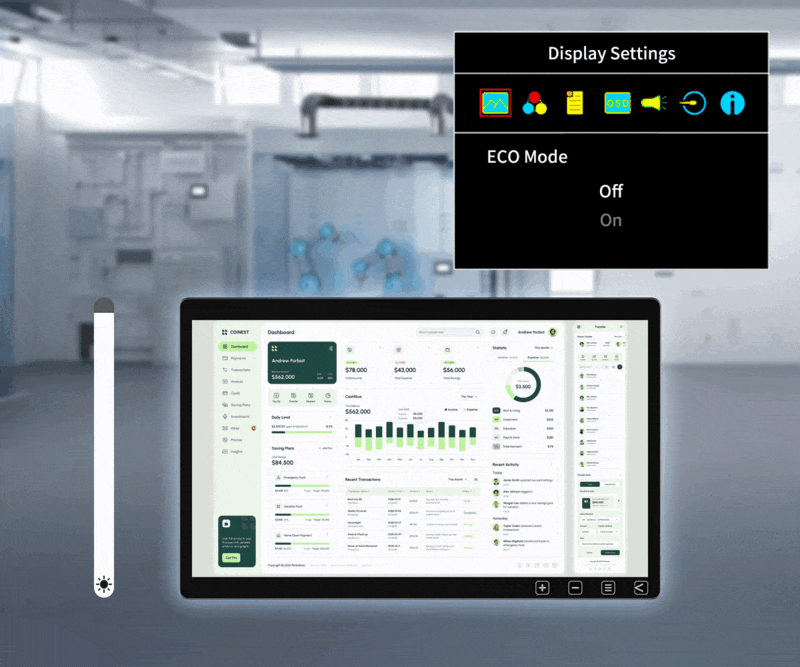

ECO Mode
The high brightness 450nits panel ensures visibility in bright environments. In typically bright indoor spaces, activating “Eco Mode” sets the brightness to “60” and gradually increase it over time, which helps extend the backlight lifespan by 20%–30%!greatly extended.

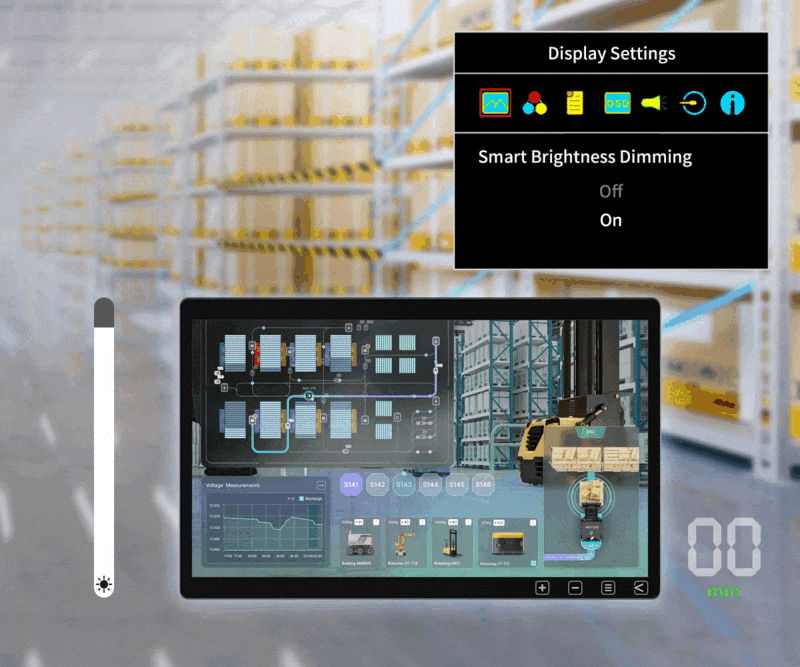

Smart Brightness Dimming
TUsing exclusive patented technology, once the ‘Smart Brightness Dimming’ function is activated, the screen automatically dims after 30 minutes of no touch activity. Tapping on the touchscreen lightly restores the brightness, effectively reducing idle power consumption and enhancing panel's life!
True-Flat Capacitive Touch Panel
Precise, Responsive and Effortlessly Smooth

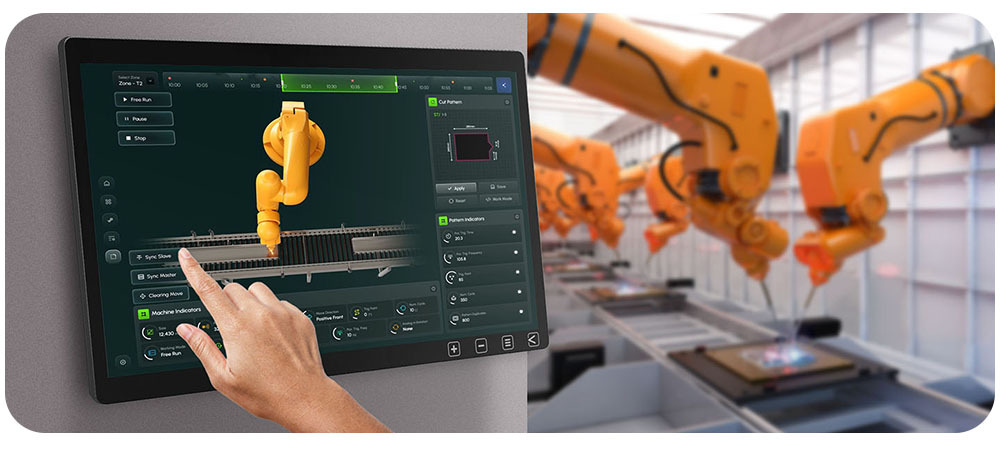

Projected capacitive touch technology delivers superior precision and fast response, transmitting touch signals via USB ports without any driver installation. It supports Windows 11/10 plug-and-play functionality and 10-point multi-touch, and is also compatible with Linux, Debian, Ubuntu, and Raspberry Pi OS. This ensures high compatibility with industrial computers and equipment, enabling easy integration into intuitive human-machine interface devices.
True-Flat Capacitive Touch Panel
Precise, Responsive and Effortlessly Smooth
Projected capacitive touch technology delivers superior precision and fast response, transmitting touch signals via USB ports without any driver installation. It supports Windows 11/10 plug-and-play functionality and 10-point multi-touch, and is also compatible with Linux, Debian, Ubuntu, and Raspberry Pi OS. This ensures high compatibility with industrial computers and equipment, enabling easy integration into intuitive human-machine interface devices.
Tips for Touching with Gloves!
PFingers are naturally conductive, providing high touch sensitivity. When using cotton gloves, it is recommended to choose snug-fitting gloves with dense stitching and smooth contact surfaces to maintain precise and responsive touch.
*Support some activated styluses with enough electromagnetic induction, such as Adonit® Dash 3/Adonit® Neo Duo.
*Does not support MPP, USI protocols, or dedicated active styluses for tablets or mobile phones.

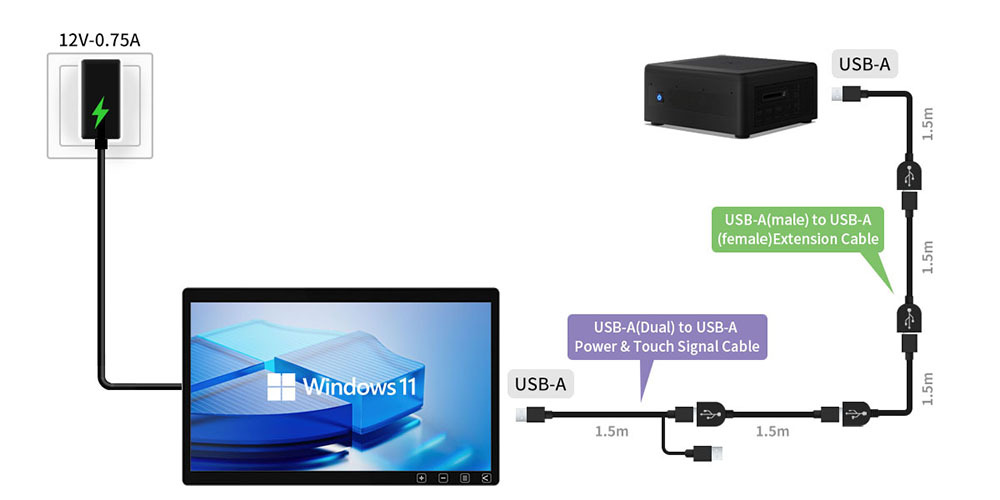

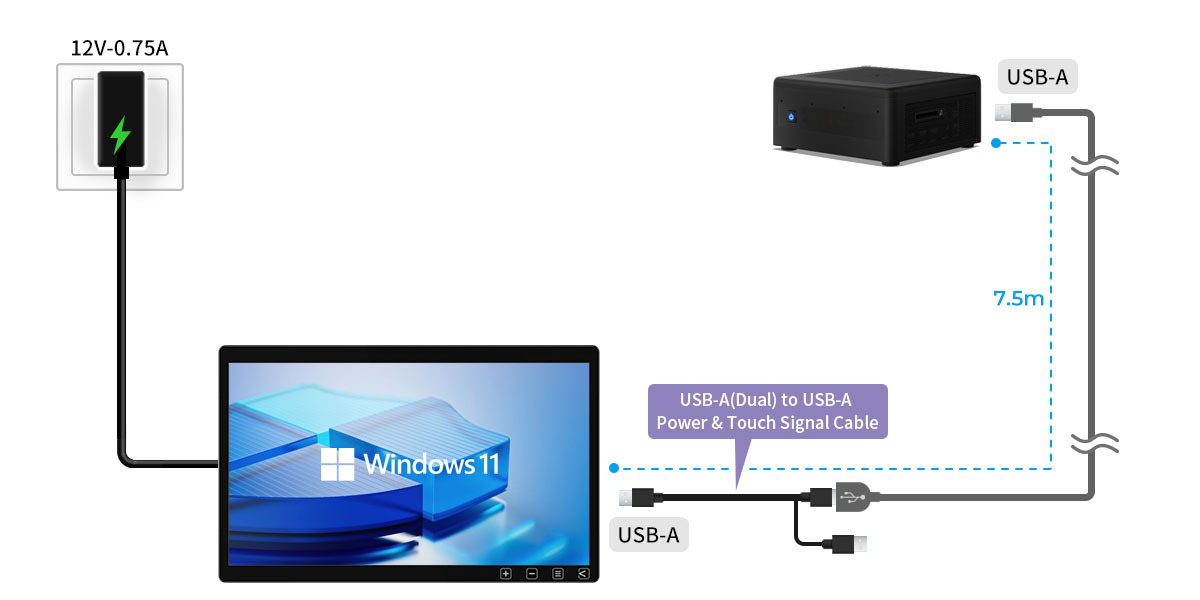

7.5M Remote Touch Transmission
Serial Connection of USB Cables Breaks the Distance Limit
To support long-distance cabling, the T315 touch monitor can use qualified USB-A cables to extend the transmission distance between the monitor and the host up to 7.5 meters, overcoming long-distance wiring challenges.
*When connecting to the 12V adapter, the monitor will automatically stop drawing power from the USB input.
*When extending USB cable, please use the 12V adapter to power the monitor.
High-Performance Dual Video I/O Ports
HDMI & USB Type-C

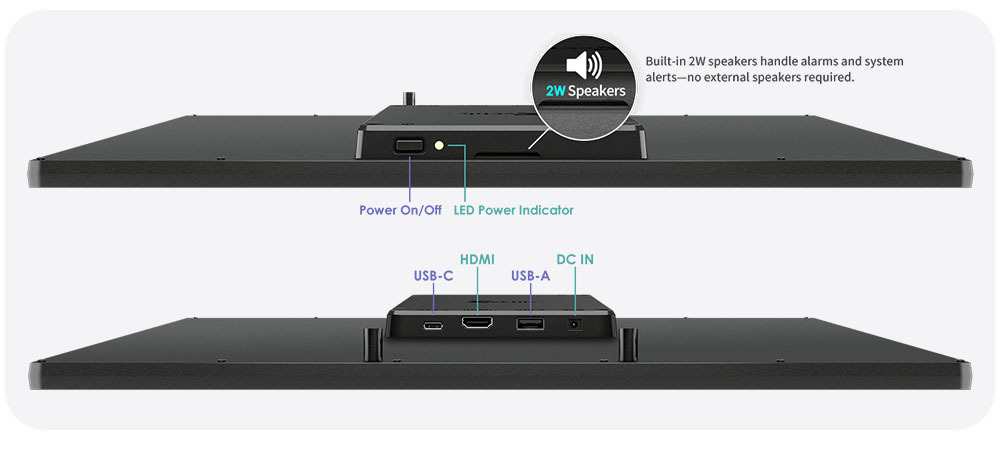

All connection ports are integrated beneath the rear I/O base for streamlined cabling! Alongside a standard HDMI-A input compatible with laptops, desktops, industrial PCs, and single-board computers, the T315 also features a USB Type-C (DisplayPort Alternate Mode) port supporting Thunderbolt 3/4 video signal input, which simultaneously transmits audio-visual content, power, and touch signals

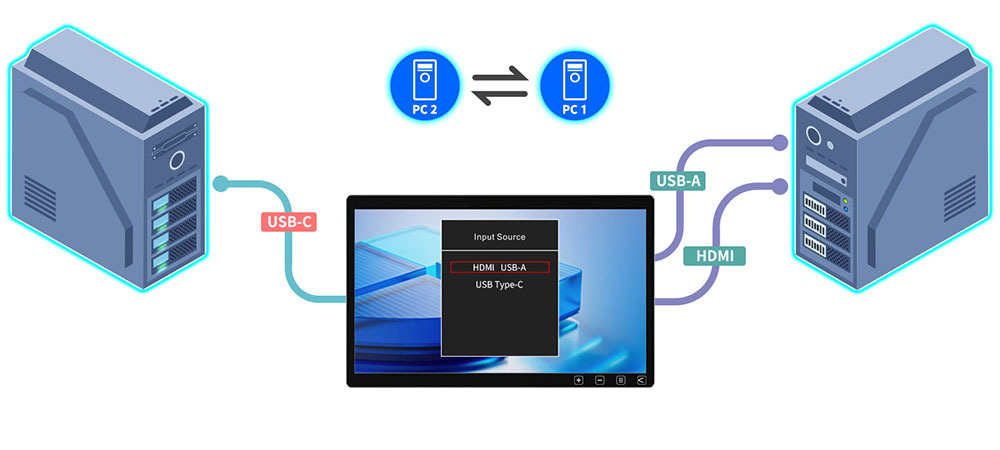

Dual PC Ready, Switch on Demand
One Monitor Connected to Two PCs
With the synchronous switch function of video and touch input, a single T315 touchscreen monitor can connect to two computers simultaneously. Use the OSD menu to instantly switch both display and touch inputs, facilitating efficient dual-platform management. This streamlined configuration simplifies your setup—saving both time and long-term and maintenance costs!
*Wake-on-Touch Setting Guide: Wake the Window 11 Computer by Tapping the Touchscreen

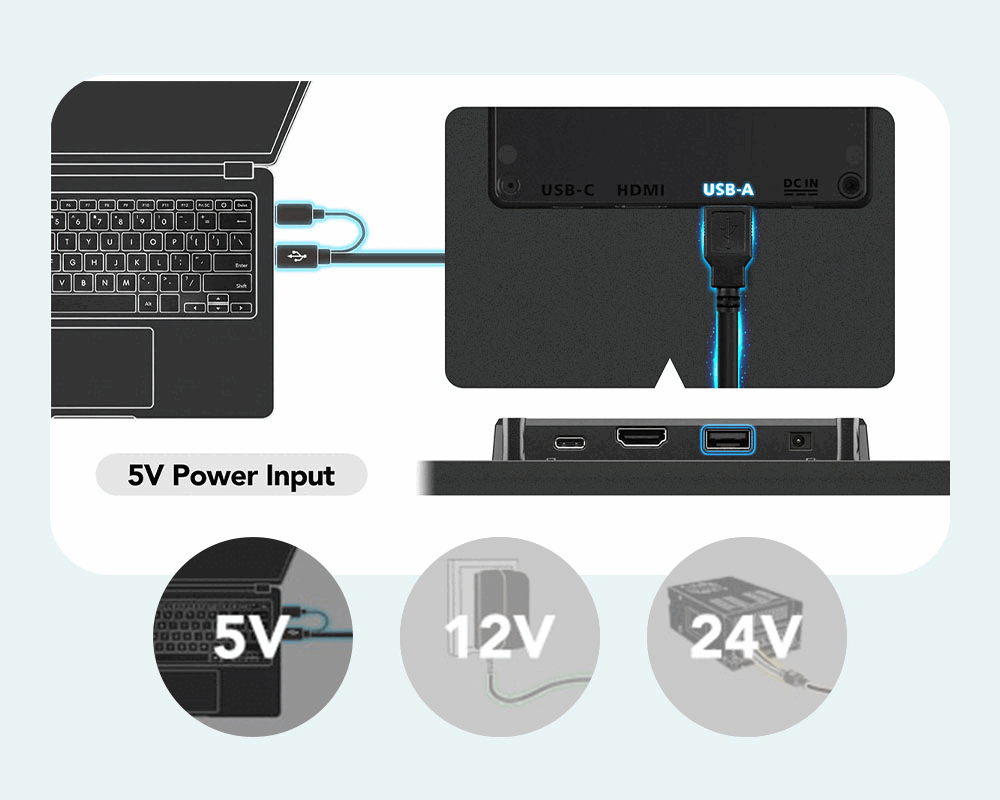

Support 5V/ 12V/ 24V
The T315 provides multi-voltage power support. It can be activated when connected to standard computer USB ports with 5V 1.8A input in total. For independent power, you may use the included 12V adapter or connect a power cord to a 24V DC supply widely used in industrial automation systems, offering flexible options for diverse touchscreen solutions.

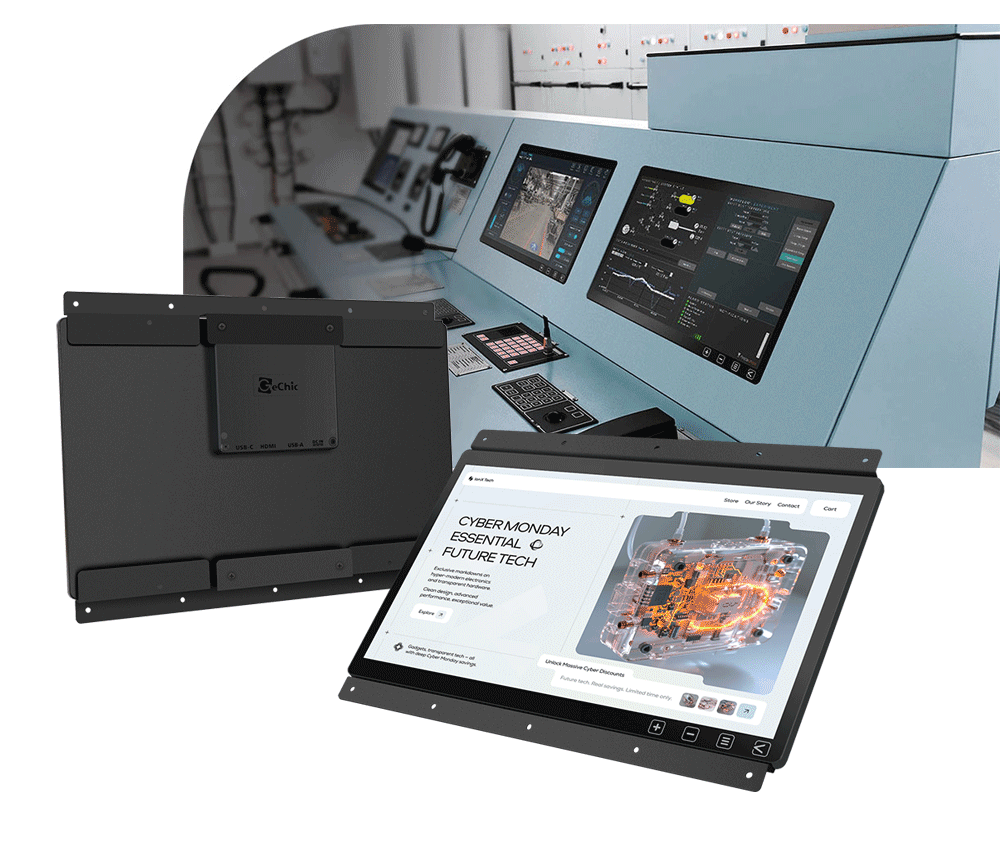

Flexible VESA 100 Mounting
SuppoPerfect for Embedded Integration
The monitor features a solid structure with 7H high-hardness glass for scratch resistance, dirt resistance, and easy cleaning. The lightweight aluminum alloy backplane adds strength while keeping the profile slim at just 11mm, integrating ports and VESA mounting holes in the rear I/O block. Combining a sleek, high-tech look with industrial-grade durability, it’s ideal for production lines, machine rooms, and commercial spaces.
___

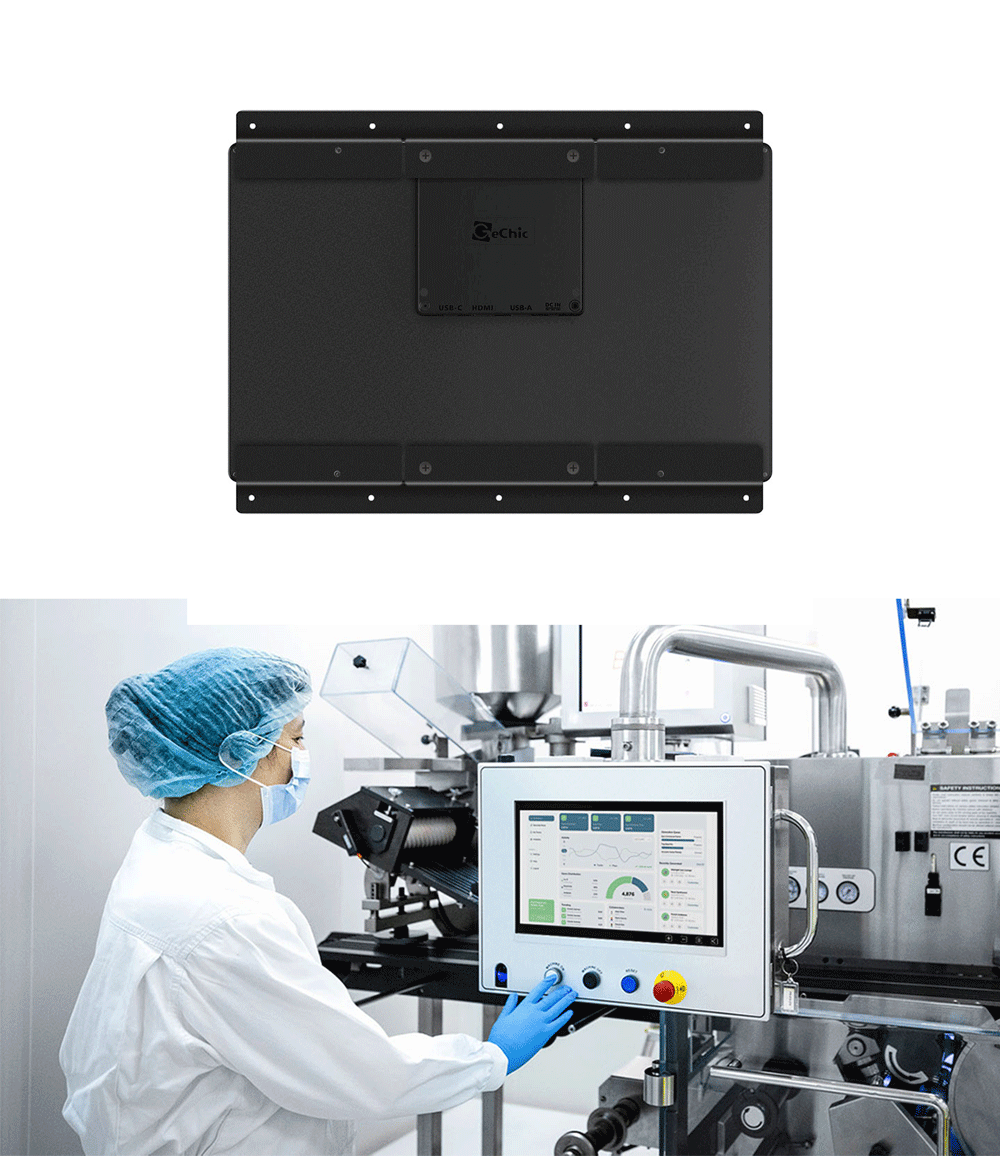

Add-On Mounting Frame for Easy Embedding
When fitted with the T315 proprietary mounting frame plate (optional), the mounting holes on the plate extend from the top and bottom of the monitor. This open-frame design offers additional options of embedding the monitor into the chassis or rear-mounting.
___
Built-in VESA 100 x 100, Ready to Mount
The monitor equips VESA 100x100 holes on the back. It can be secured to a VESA desk stand, arm, or wall mount bracket using only four M4 screws, meeting a variety of installation configurations.
