15.6 Inch. Ultra-Thin Capacitive Touchscreen Monitor
Access Smooth Touch with & AntifoulingCoatings
The T151E touchscreen monitor combines AF anti-fingerprint and anti-fouling coatings with a slim design for a durable and attractive terminal interface. Its surface, treated with nano and advanced AF coatings, offers anti-fingerprint and easy cleaning features. Ideal for commercial, industrial, and embedded applications, it provides excellent user experience with high-transparency glass and responsive touch performance.
High Precision Capacitive Technology
Support Windows 11/Linux/Ubuntu and Other Operating Systems
With a capacitive touch panel, the monitor offers high precision and speed. It supports plug-and-play USB touch signals, recognizing ten-finger touch on Windows 11/10 without drivers. Compatible with Linux, Ubuntu, Raspberry Pi OS, and Chrome OS, it enables intuitive interfaces for diverse applications. Ideal for control systems, educational devices, and interactive signage.
*If the version of Linux does not enable touchscreen support, please contact your OS distributor to enable the "HID multi-touch panels" function.
AF Anti-Fingerprint and Anti-Fouling Coating
Smooth and Durable, Greatly Reducing Fingerprint Residue
The T151E monitor features AF Anti-Fingerprint and Anti-Fouling coating, giving the glass surface oleophobic and hydrophobic properties. It resists fingerprints, oil stains, and water marks, keeping the screen clean and ensuring smooth touch operation even with dust and dirt.
Access Smooth Touch with & AntifoulingCoatings
The T151E touchscreen monitor combines AF anti-fingerprint and anti-fouling coatings with a slim design for a durable and attractive terminal interface. Its surface, treated with nano and advanced AF coatings, offers anti-fingerprint and easy cleaning features. Ideal for commercial, industrial, and embedded applications, it provides excellent user experience with high-transparency glass and responsive touch performance.
High Precision Capacitive Technology
Support Windows 11/Linux/Ubuntu and Other Operating Systems
With a capacitive touch panel, the monitor offers high precision and speed. It supports plug-and-play USB touch signals, recognizing ten-finger touch on Windows 11/10 without drivers. Compatible with Linux, Ubuntu, Raspberry Pi OS, and Chrome OS, it enables intuitive interfaces for diverse applications. Ideal for control systems, educational devices, and interactive signage.
*If the version of Linux does not enable touchscreen support, please contact your OS distributor to enable the "HID multi-touch panels" function.
AF Anti-Fingerprint and Anti-Fouling Coating
Smooth and Durable, Greatly Reducing Fingerprint Residue
The T151E monitor features AF Anti-Fingerprint and Anti-Fouling coating, giving the glass surface oleophobic and hydrophobic properties. It resists fingerprints, oil stains, and water marks, keeping the screen clean and ensuring smooth touch operation even with dust and dirt.
Gloves/Wet Fingers/Stylus
Gloves/Wet Fingers/Stylus
The touchscreen supports operation with wet fingers, gloves, or styluses over 6mm. Even in demanding environments, it maintains accurate and responsive control for handwriting, precise input, or general use.
*Support some activated styluses with enough electromagnetic induction, such as Adonit® Dash 3/Adonit® Neo Duo.
Connecting USB Cable Serially Breaks the Distance Limit
T1 series monitor independently. When the T1 touch monitor is located far from the host, by connecting a USB-A to USB-C power and touch signal cable, along with several 1.5-meter USB-A (male) to USB-A (female) extension cables(optional), it can support a total length of up to 7.5 meters for touch signal distance, effortlessly solving the wiring challenge of long-distance touch control.
*When connecting to the 12V adapter, the monitor will automatically stop drawing power from the USB input.
*When extending USB cable, please use the 12V adapter to power the monitor.
Build a Powerful Touchscreen Machine by–
HDMI&USB Type-C

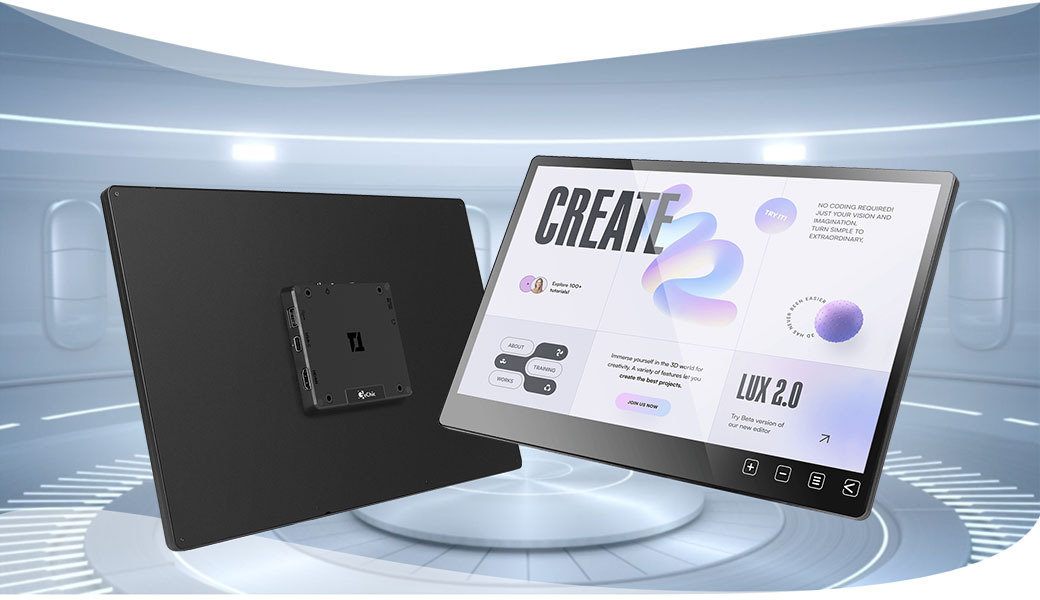

The rear I/O block integrates all ports, including HDMI-A for PCs and industrial computers. T151E features USB-C, supporting Thunderbolt 3/4 for audio and video input, ensuring wide compatibility with modern devices.
When the T151E monitor is connected via USB-C, its USB-A port works as an extension of the computer, allowing connection to a mouse, keyboard, USB drive, or webcam. No need to reach the host even if the monitor is placed far away!
*When using USB-A as the expansion port of the host/computer, the monitor must be connected to the 12V adapter.

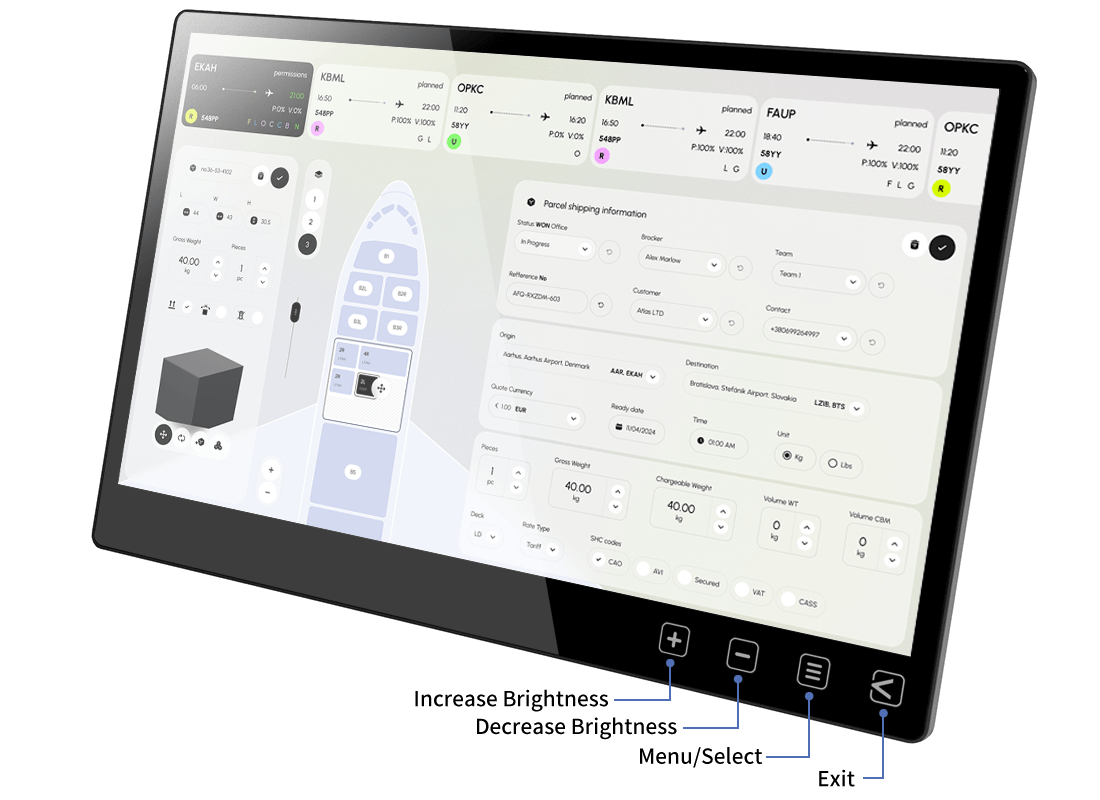

The front of T1 monitor is fully plat glass, incorporating touch sensitive OSD buttons for easy access to OSD menu configuration. In addition, the rear I/O ports simplifies wiring issues. When building a touchscreen machine or equipment, the monitor can be perfectly integrated into the hardware design to build a one-body formed appearance.
You can select "OSD Button Lock" in the OSD menu to avoid accidental touch.
Built with Durability in Every Detail

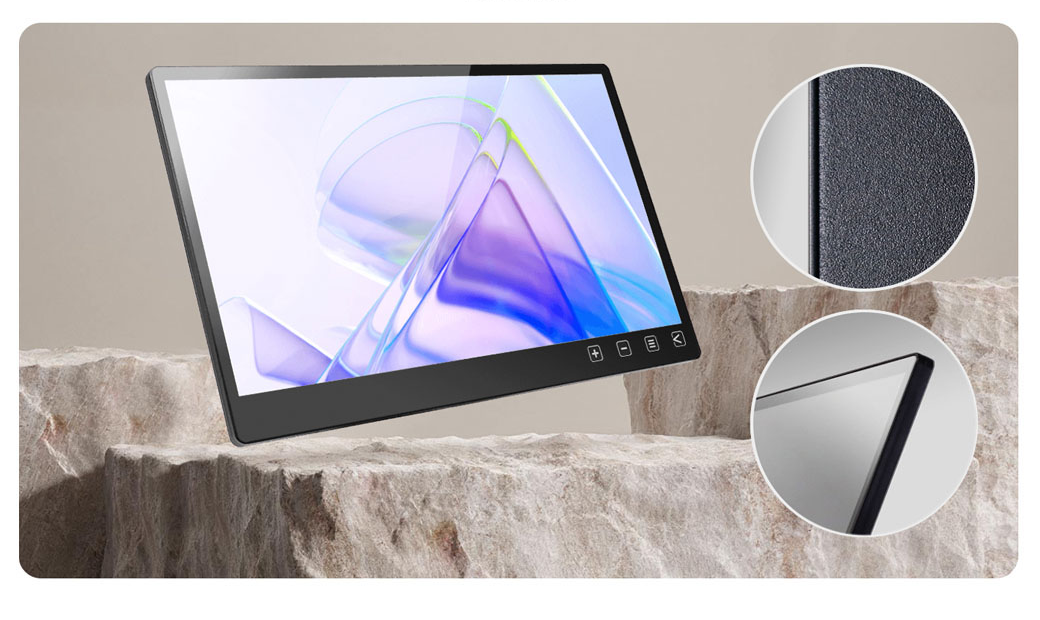

The monitor features a sturdy design with 7H hardness front glass for scratch resistance and easy cleaning, and a lightweight aluminum alloy backplate. With ports and VESA holes integrated into an 11mm slim I/O block, it offers a sleek yet durable build ideal for production lines, machine rooms, and commercial spaces.
Superb Picture Quality, Clear and Vivid
The T131B touchscreen monitor uses a 170° wide viewing angle panel with 1920×1080 resolution and sRGB 100% wide color gamut. It can not only present detailed and clear picture quality, but also naturally presents light and dark details with a high-specification 1000:1 contrast ratio, allowing the picture is more three-dimensional, and bring a vivid and comfortable visual experience regardless of displaying text, image or video!
Wall-Mounted
Use with the 75mm×75mm wall mount clips on the market to fix the monitor on the wall.
Just need to use four M4 screws for installing the T1 monitor to the monitor arm.
All-Round Direction with Stability
The T1S5 stand, made of aluminum alloy and stainless steel, offers a strong and durable structure. It supports both horizontal and vertical setups via VESA 75 and features a 360° rotating base for quick direction changes. With wide support arms and a large base, it ensures stable touch operation.
360° Rotation
Turn it Now to Share
With a slight turn, the round turntable allows 360° rotation with 48 stops to hold the angle firmly. Ideal for interactive signage or signing boards at shops and service counters, the T1S5 stand ensures smooth and stable customer interaction.
Height & Tilt Angles Stepless Adjustment
The T1S5 swivel stand adopts a two-section pivot design, allowing you to freely adjust the monitor's tilt and height. By keeping the monitor's center of gravity within the base, you can effortlessly create the optimal personalized setup!.
