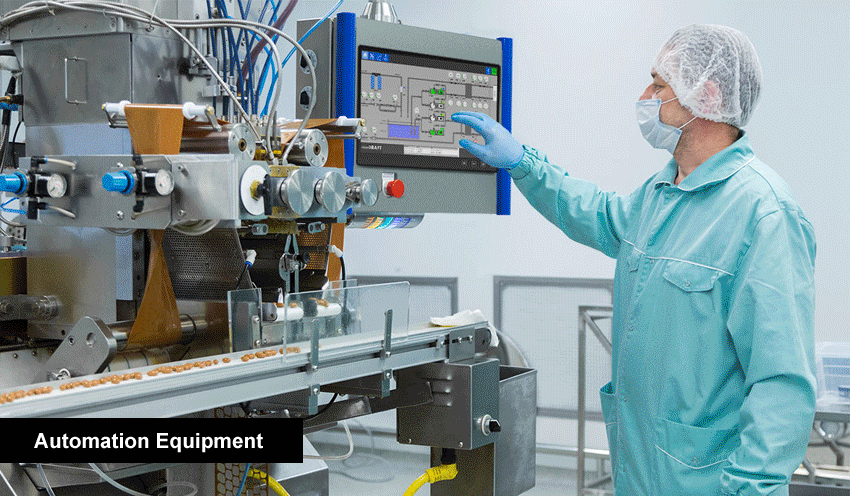

Reliable Touch Solution for Industrial Equipment
All Round Protection with Matte, Antibacterial Touchscreen Monitor

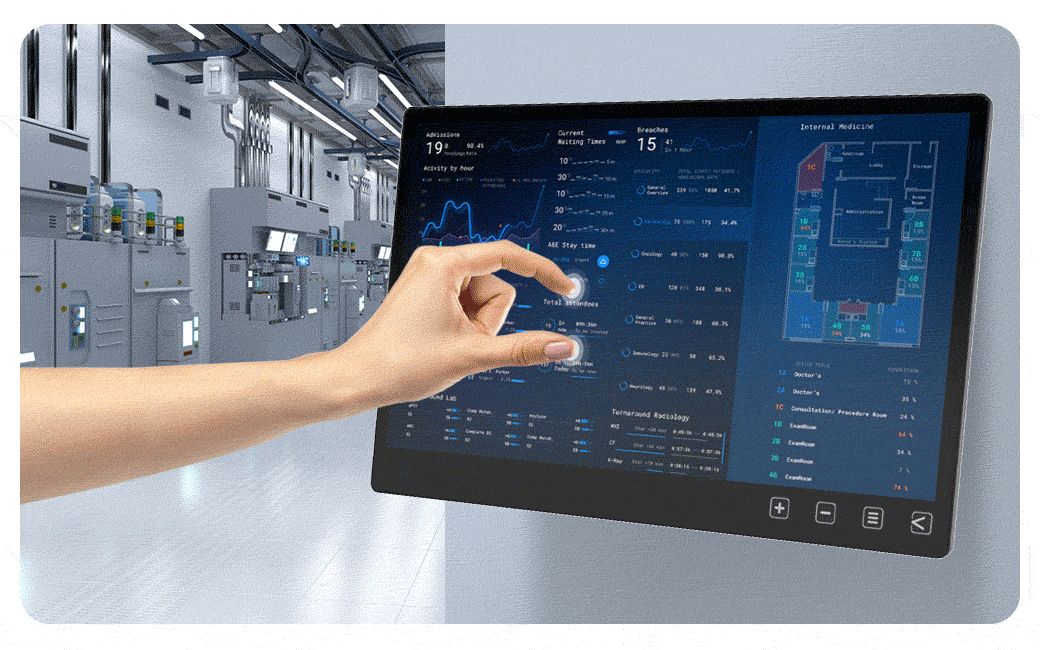

Support Embedded | Wall-Mount | Desktop Installation

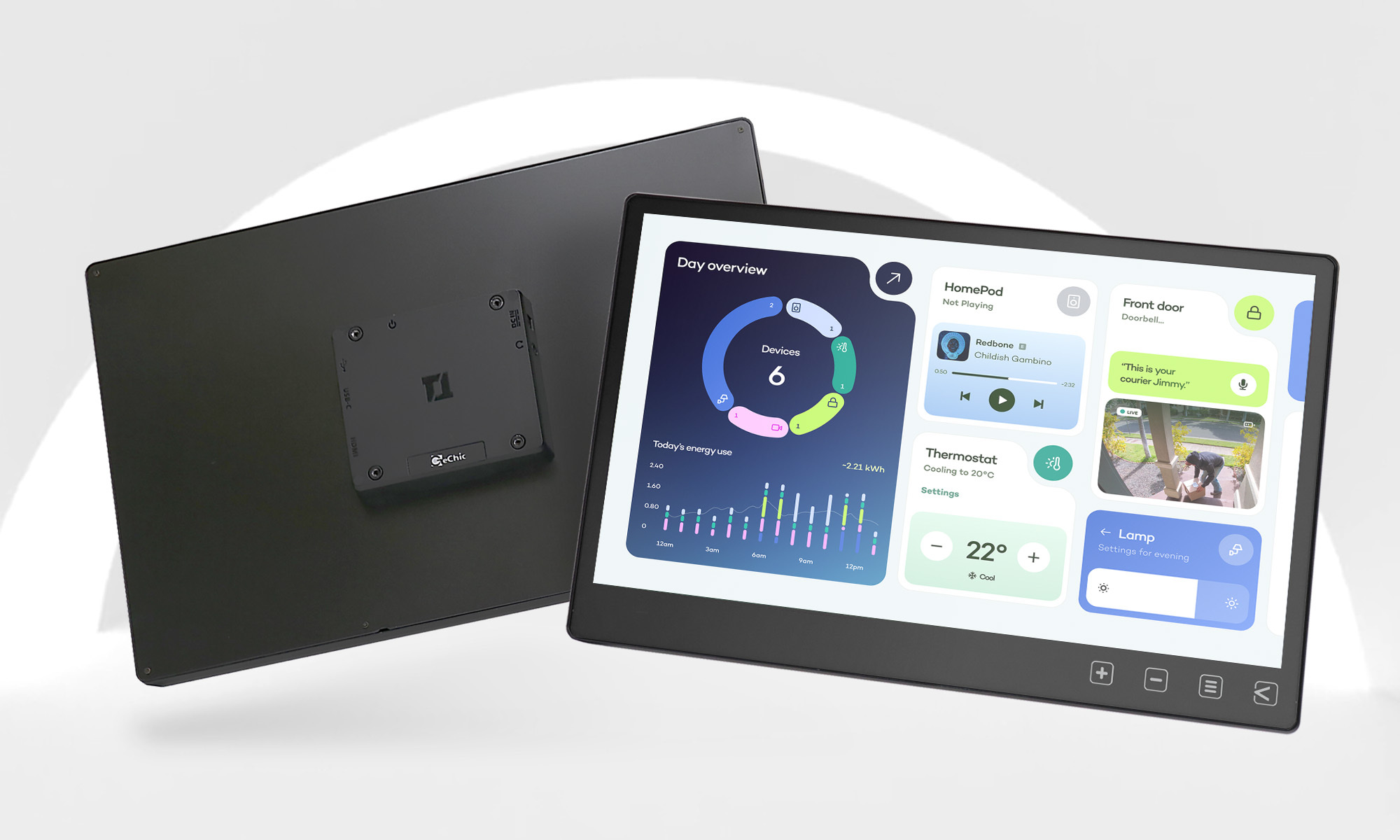

The T151B touchscreen monitor features a matte finish to reduce glare and an antibacterial coating for hygiene protection. Its slim, durable design fits medical, industrial, educational, and retail environments. With capacitive touch technology, it ensures smooth operation and easy integration into various terminal devices for safe and efficient control solutions.


Projected Capacitive Touch Panel
Support Windows 11/Linux/Ubuntu and Other Operating Systems
With a capacitive touch panel, the monitor offers high precision and speed. It supports plug-and-play USB touch signals, recognizing ten-finger touch on Windows 11/10 without drivers. Compatible with Linux, Ubuntu, Raspberry Pi OS, and Chrome OS, it enables intuitive interfaces for diverse applications. Ideal for control systems, educational devices, and interactive signage.
*If the version of Linux does not enable touchscreen support, please contact your OS distributor to enable the "HID multi-touch panels" function.


AG, Matte Surface Treatment
Minimize Glare for Comfortable Viewing
The T151B touchscreen monitor adopts AG (Anti-Glare) coating to effectively diffuse reflections from ambient light at multiple angles. Compared to glossy screens, it significantly reduces dazzling glare and minimizes viewing angle limitations caused by light sources. This improves viewing comfort, protects eyesight, and makes the monitor easier to use in bright environments.

Antibacterial Coating
Better Protection, Better Security
As displays in production lines or public spaces are often touched, screens easily become breeding grounds for bacteria and viruses. The T151B’s touch glass features an antibacterial coating that releases silver ions to break down bacterial and viral structures. Certified by ISO and JIS standards, it effectively inhibits bacterial growth, inactivates viruses and microorganisms, and prevents the screen from becoming a source of contamination.

Support Various Touch Media
Gloves/Wet Fingers/Stylus
The touchscreen works smoothly even with wet or sweaty fingers, ensuring reliable operation in diverse environments. For precise input or handwriting, use a stylus with a conductive rubber or plastic disc of at least 6mm. Users wearing gloves can operate the screen without removing them, making it convenient for industrial or medical applications.

*Support some activated styluses with enough electromagnetic induction, such as Adonit® Dash 3/Adonit® Neo Duo.

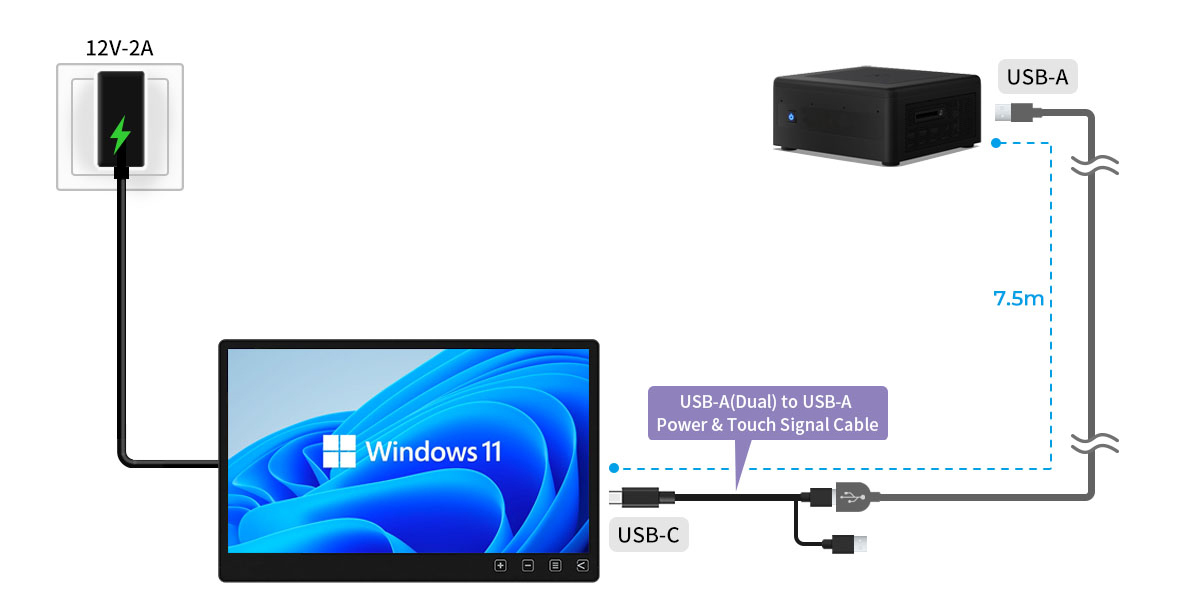

7.5M Remote Touch Transmission
Connecting USB Cable Serially Breaks the Distance Limit
T1 series focuses more on the quality of signal transmission. To adapt to various operating environments and distance requirements, you can use 12V adapter to power T1 series monitor independently. When the T1 touch monitor is located far from the host, by connecting a USB-A to USB-C power and touch signal cable, along with several 1.5-meter USB-A (male) to USB-A (female) extension cables(optional), it can support a total length of up to 7.5 meters for touch signal distance, effortlessly solving the wiring challenge of long-distance touch control.



*When connecting to the 12V adapter, the monitor will automatically stop drawing power from the USB input.
*When extending USB cable, please use the 12V adapter to power the monitor.

Industry-Leading Daul Video Interfaces
HDMI&USB Type-C
The ports are integrated on the rear I/O block, including a standard HDMI-A port for commercial and industrial computers. To support new-generation devices, the T151B also features a USB-C port compatible with Thunderbolt 3 and 4 for audio and video input, ensuring broad device compatibility with an industry-leading interface.

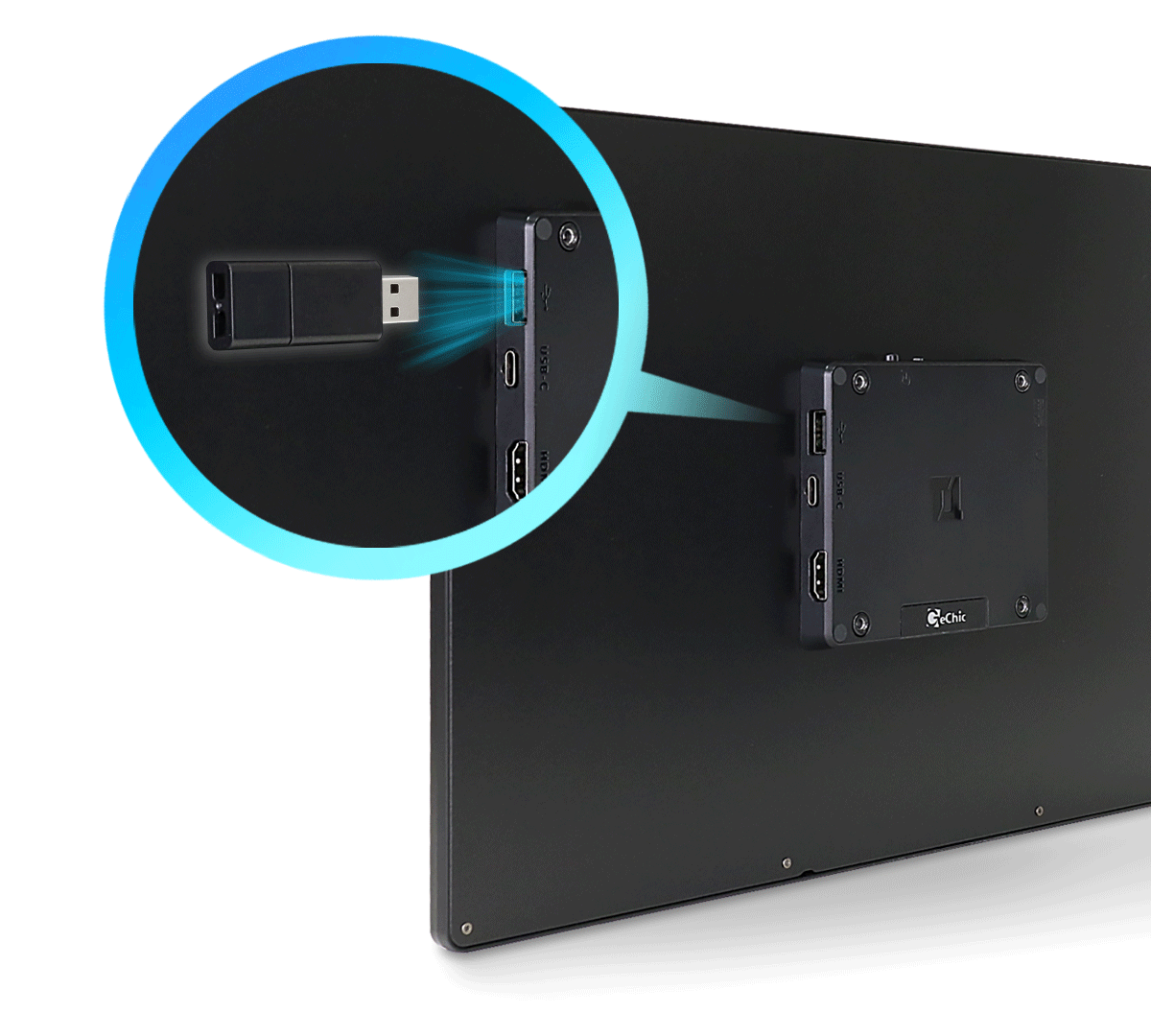

USB-A Port for Expandability& Quick Installation
When the T151E monitor is connected via USB-C, its USB-A port works as an extension of the computer, allowing connection to a mouse, keyboard, USB drive, or webcam. No need to reach the host even if the monitor is placed far away!


*When using USB-A as the expansion port of the host/computer, the monitor must be connected to the 12V adapter.

High Durability & Flawless Functionality
The monitor features a solid structure with 7H high-hardness glass for scratch resistance, dirt resistance, and easy cleaning. The lightweight aluminum alloy backplane adds strength while keeping the profile slim at just 11mm, integrating ports and VESA mounting holes in the rear I/O block. Combining a sleek, high-tech look with industrial-grade durability, it’s ideal for production lines, machine rooms, and commercial spaces.

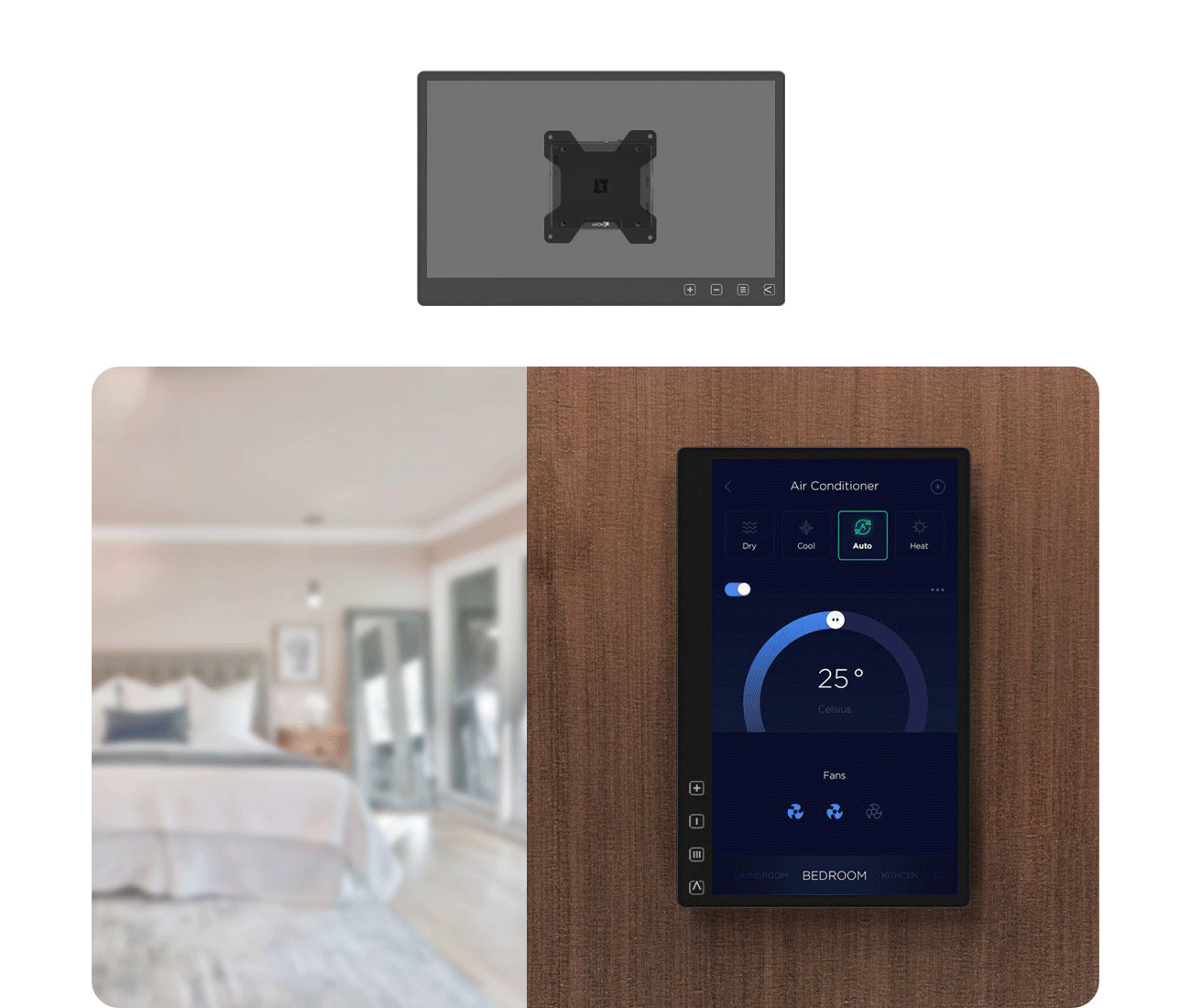

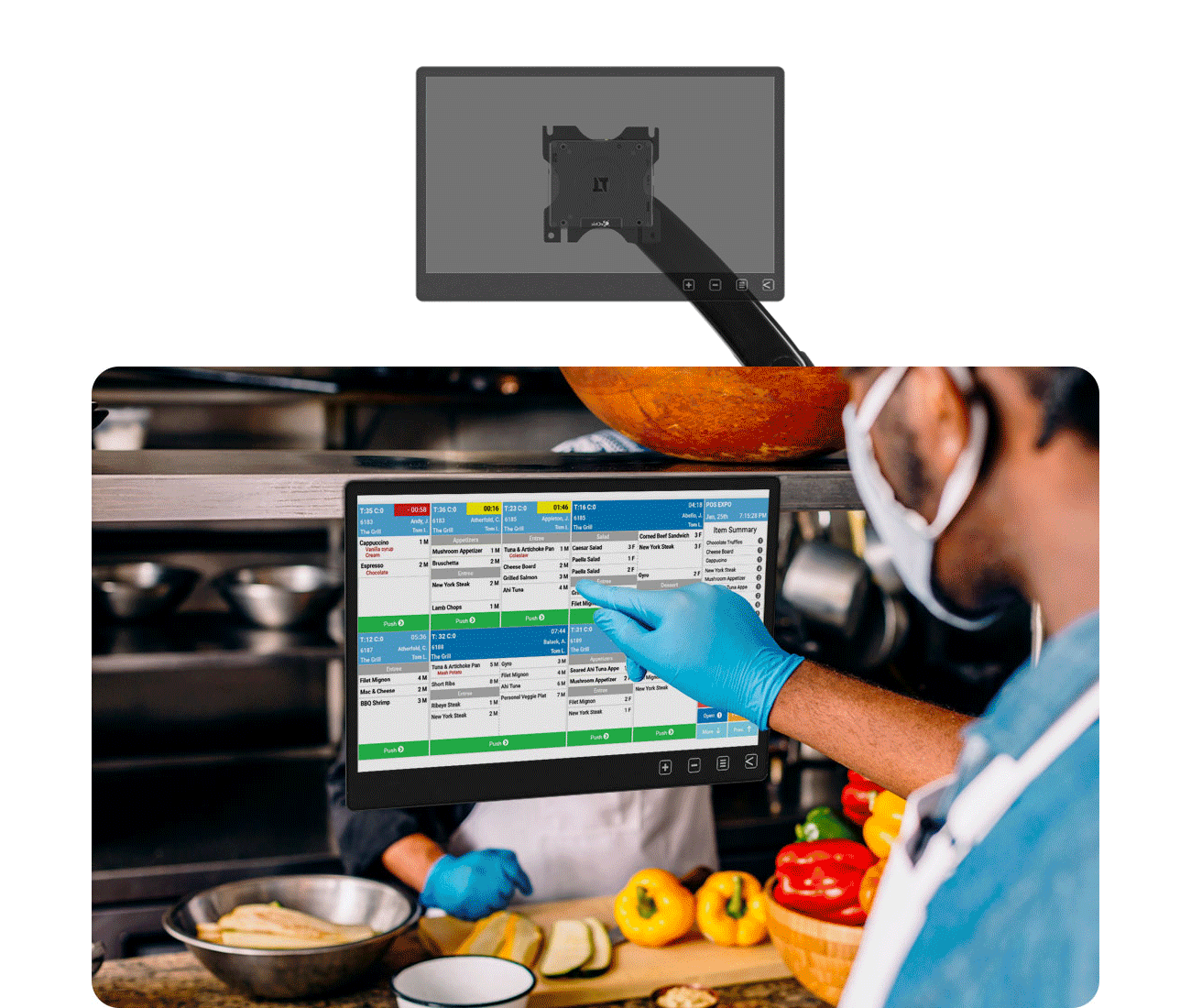

Flexible&Stable VESA 75 Mount

To maximize the convenience of configuration, the T1 monitor includes VESA 75 screw holes in its compact and slim body, which allows the monitor to fit any space and meet the requirements of installing to machine and mount securely to any kinds of stands. The T1 monitor is compatible with standard 75×75mm wall mount brackets and VESA monitor arms on the market. Simply use four M4 screws to securely install it on either a wall bracket or an adjustable arm.

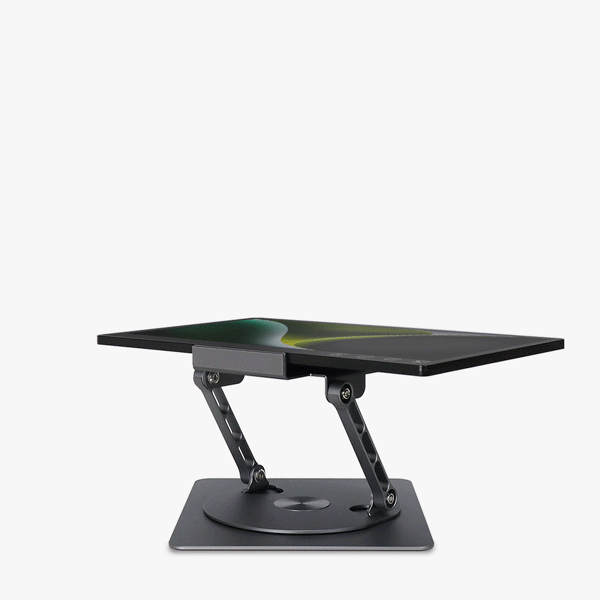

Optional Accessory of T1 Series
All-Round Direction with Stability
The T1S5 stand, made of aluminum alloy and stainless steel, offers a strong and durable structure. It supports both horizontal and vertical setups via VESA 75 and features a 360° rotating base for quick direction changes. With wide support arms and a large base, it ensures stable touch operation.

360° Rotation
Turn it Now to Share
With a slight turn, the round turntable allows 360° rotation with 48 stops to hold the angle firmly. Ideal for interactive signage or signing boards at shops and service counters, the T1S5 stand ensures smooth and stable customer interaction.

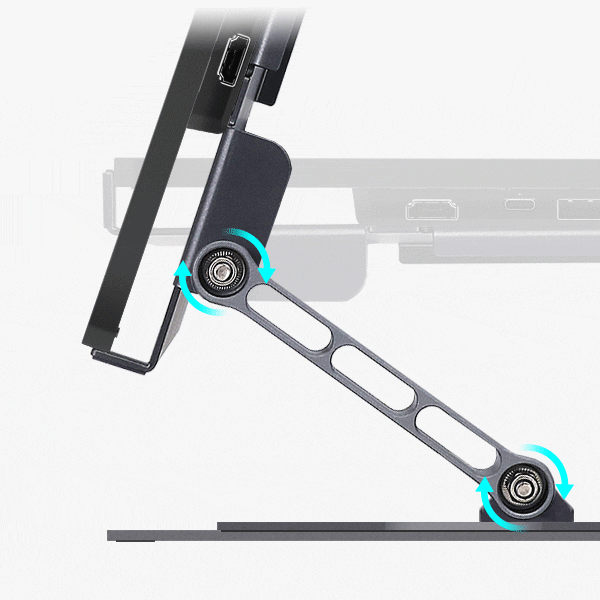

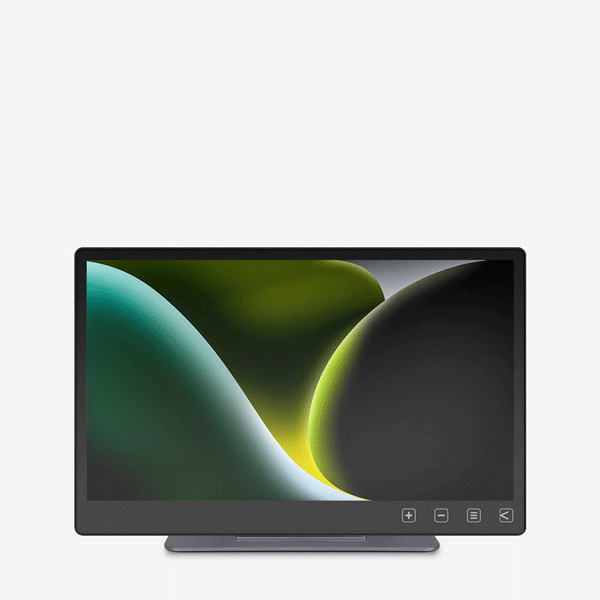

Height & Tilt Angles Stepless Adjustment
The T1S5 swivel stand adopts a two-section pivot design, allowing you to freely adjust the monitor's tilt and height. By keeping the monitor's center of gravity within the base, you can effortlessly create the optimal personalized setup!.
