Specification
- Applicable to
T152C/ T112C Series​ - Content
5V 2A Power Adapter×1
USB-A(Dual) to USB-A Power and Touch Signal Cable(1.5 meter)
We adopt high quality material for the cable. Use Gechic OEM cable for On-Lap monitor to avoid any issue while transmission of the signal.
Instruction
When connecting the T152C/T112C touch monitor to a computer, if the computer cannot provide sufficient current to the monitor, please use the adapter set to supply power independently to the monitor.
Note: The monitor requires 5V 1.8A current. Therefore, a single USB-A port on the computer must output at least 5V 0.9A.

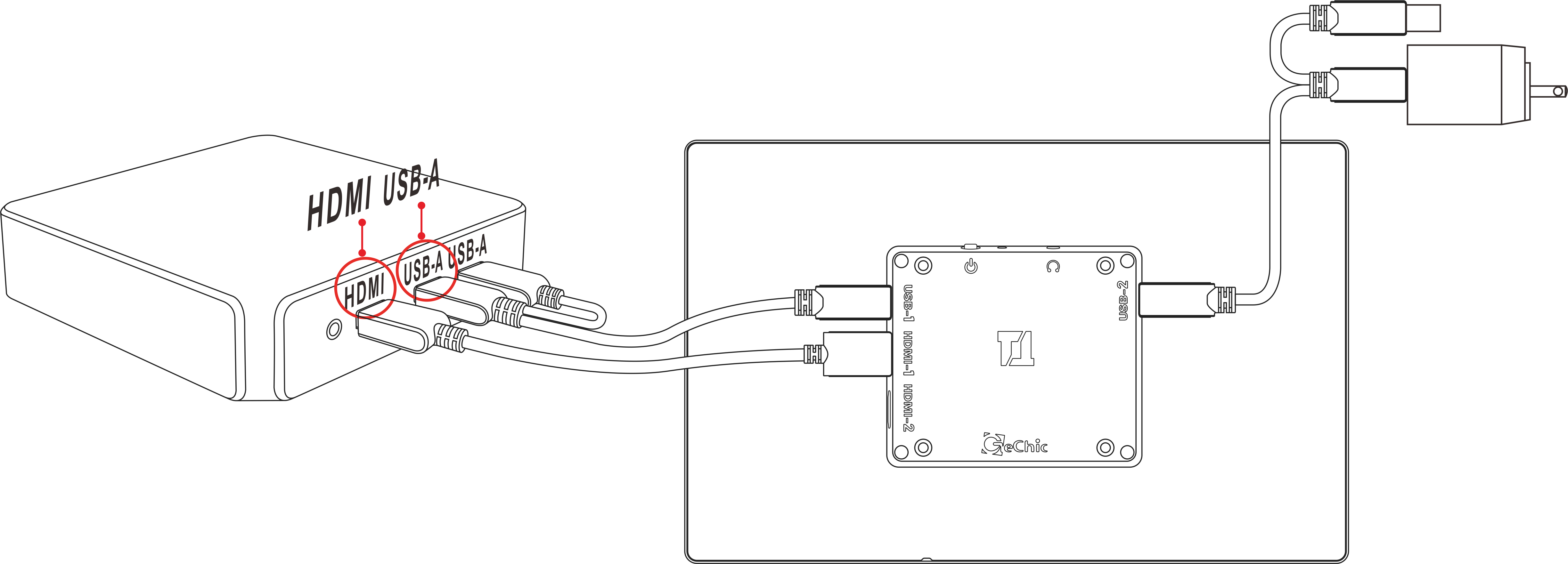

- When the monitor is connected to the computer via the USB-1 and HDMI-1 ports, use the USB-2 port to connect to the charger. Similarly, when the USB-2 and HDMI-2 ports are connected to the computer, use the USB-1 port to connect to the charger.
- Use the dual-plug end of the USB-A cable to insert the main head into the charger and connect it to a power outlet.
- Insert the single-plug end of the USB-A cable into the USB-2 port of the T152C/T112C monitor to supply power.
